AllSportsystems SkyRail Adjustable Sliding Ceiling Projector Mount for Golf Simulators

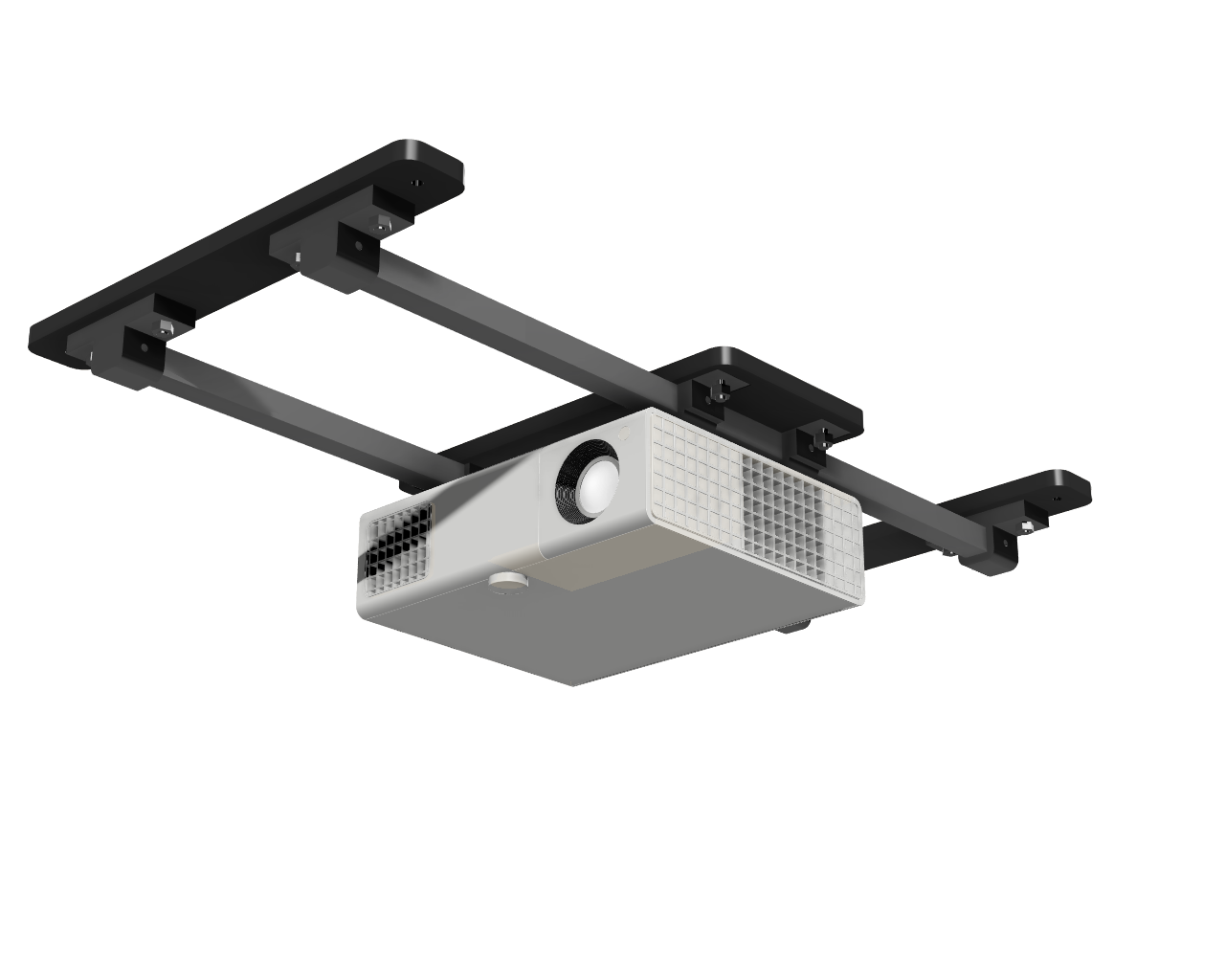

SkyRail™ Sliding Projector Mount – Achieve Perfect Placement for Any Projector
The SkyRail™ sliding projector mount offers a revolutionary way to set up your golf simulator projector. With its adjustable sliding track, you can easily fine-tune the distance between your projector and the screen for a perfectly aligned image. Available in multiple sizes and configurations, the SkyRail™ mount is the ideal solution for precise, hassle-free installation.

• Precise Image Alignment: Effortlessly slide your projector along the rail to achieve the optimal throw distance for your screen.
• Versatile Installation: Compatible with all projectors and golf simulator enclosures, including vaulted or slanted ceilings.
• Customizable Options: Multiple rail sizes, mounting plates, and color choices to match your setup perfectly.

Sliding Plate & Projector Mount Options:

1. Universal Projector Mount with Precut Sliding Plate:
   • Supports projectors up to 25 lbs.
   • Mounts less than 1/2" below the ceiling for a sleek look.
2. Generic ABS Sliding Plate:
   • Works with any projector mount.
   • Provides a 6" x 6" area for custom mounting adjustments.

Rail Options:

• Standard Rails: High-gloss black finish for projectors up to 25 lbs.
• Heavy-Duty Rails: Durable silver finish for projectors up to 50 lbs.

Color Options:

• Black brackets and sliding plate with standard black rails.
• White brackets and sliding plate with heavy-duty silver rails.

Adjustable Mounting Features:

• Height adjustment from just 5 inches to 25.6 inches below the ceiling with included extensions.
• Tilt and leveling adjustments for flawless screen alignment.

Use this simple formula to calculate the sliding range:
(Span Length - 11") = Projector Sliding Range

• Standard lengths: 16", 24", 32", and 48".
• The 48-inch rail provides maximum sliding range (37 inches) for dual-aspect use (16:9 and 4:3 formats).

Need custom dimensions? Contact us for a tailored solution!

Follow these steps for quick and easy installation:

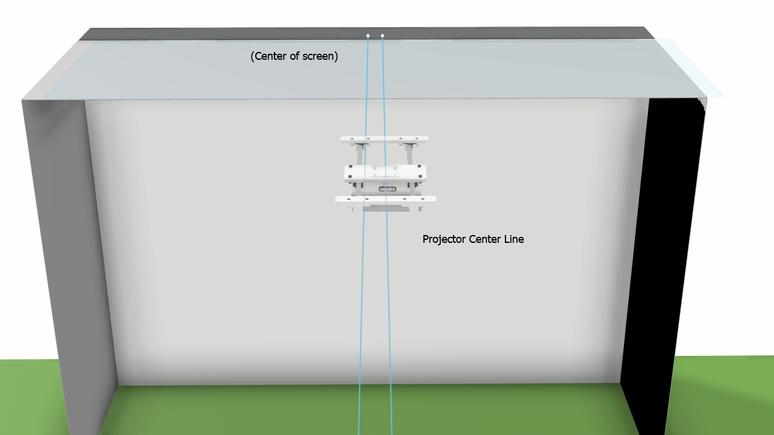

1. Determine the Projector Center Line: Place your projector on the floor, center it with your screen, and measure its distance from the nearest wall.
2. Find the Approximate Throw Distance: Refer to your projector’s throw distance specs or position it on the floor to fill the screen width.
3. Mark the SkyRail™ Center Point: On your ceiling, mark the center line and throw distance.
4. Install the SkyRail™: Align the rail with your studs, mark the mounting holes, drill, and secure the unit to the ceiling.
5. Attach and Adjust the Projector: Secure your projector and fine-tune its position using the sliding rail system.

How strong is the SkyRail™ mount?

The SkyRail™ is built for durability, supporting over 150 lbs on its 1/2" thick mounting plate. For added security, anchor at least two screws into ceiling studs.

Does it work with vaulted or slanted ceilings?

Yes! The SkyRail™ includes set screws that securely lock the projector in place, even on angled ceilings.

Can I use the mount for both 4:3 and 16:9 formats?

Absolutely! The 48-inch rail allows seamless switching between formats by sliding the projector to the correct position (up to a 37" range).

Optional Upgrade – Projector Shield™

Enhance your setup with the Projector Shield™, a protective cage designed to safeguard your projector from stray golf balls or club strikes. Perfect for any golf simulator environment.

• Easy Installation: Save time and effort with precise, adjustable mounting.
• Universal Compatibility: Works with all projectors, mounts, and enclosures.
• Custom Solutions: Choose from multiple rail lengths, finishes, and configurations.

Order your SkyRail™ Sliding Projector Mount today and enjoy the ultimate flexibility and precision in your golf simulator setup!
